House Project LK&1757
House Project LK&1757
Sale
See Mirror image
Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 200,80 m² |
| 2. Additional area | 58,62 m² |
| 3. Total surface | 429,20 m² |
| 4. Building area | 230,30 m² |
| 5. Net volume | 957,96 m³ |
| 6. Gross volume | 1160,73 m³ |
| 7. Building height | 10,60 m |
| 8. Roof angle | 43 ° |
| 9. Сeiling height | 2,70 m |
| 10. Minimum plot size | 28,00 x 19,50 m |
| 1. Foundation footings | reinforced concrete |
| 2. Foundation walls | concrete blocks, insulation with extruded polystyrene XPS |
| 3. Exterior walls | Porotherm ceramic hollow brick with a thickness of 30 cm by Wienerberger, insulation Termonium styrofoam / Isover rockwool |
| 4. Interior walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 25 cm |
| 5. Partition walls | Porotherm Dryfix ceramic hollow bricks by Wienerberger with a thickness of 11.5 cm |
| 6. Ceiling | made of reinforced concrete, monolithic |
| 7. Facade | outer silicone plaster color white, facade panels made of composite wood panels |
| 8. Windows and doors | aluminum by Aluprof firm |
| 9. Ventilation | mechanical with recuperation |
Basement
| Usable area | 75,47 + 58,62 m2 |
| 1. Lobby | 12,17 m2 |
| 2. Corridor | 10,85 m2 |
| 3. Storeroom | 10,94 m2 |
| 4. Music Hall | 9,70 m2 |
| 5. Bathroom | 4,06 m2 |
| 6. Laundry room | 8,46 m2 |
| 7. Room | 9,79 m2 |
| 8. Room 2 | 9,50 m2 |
| 9. Utility room | 10,70 m2 |
| 10. Garage | 47,92 m2 |
Ground floor
| Usable area | 125,33 m2 |
| 1. Corridor | 6,02 m2 |
| 2. Canteen | 15,91 m2 |

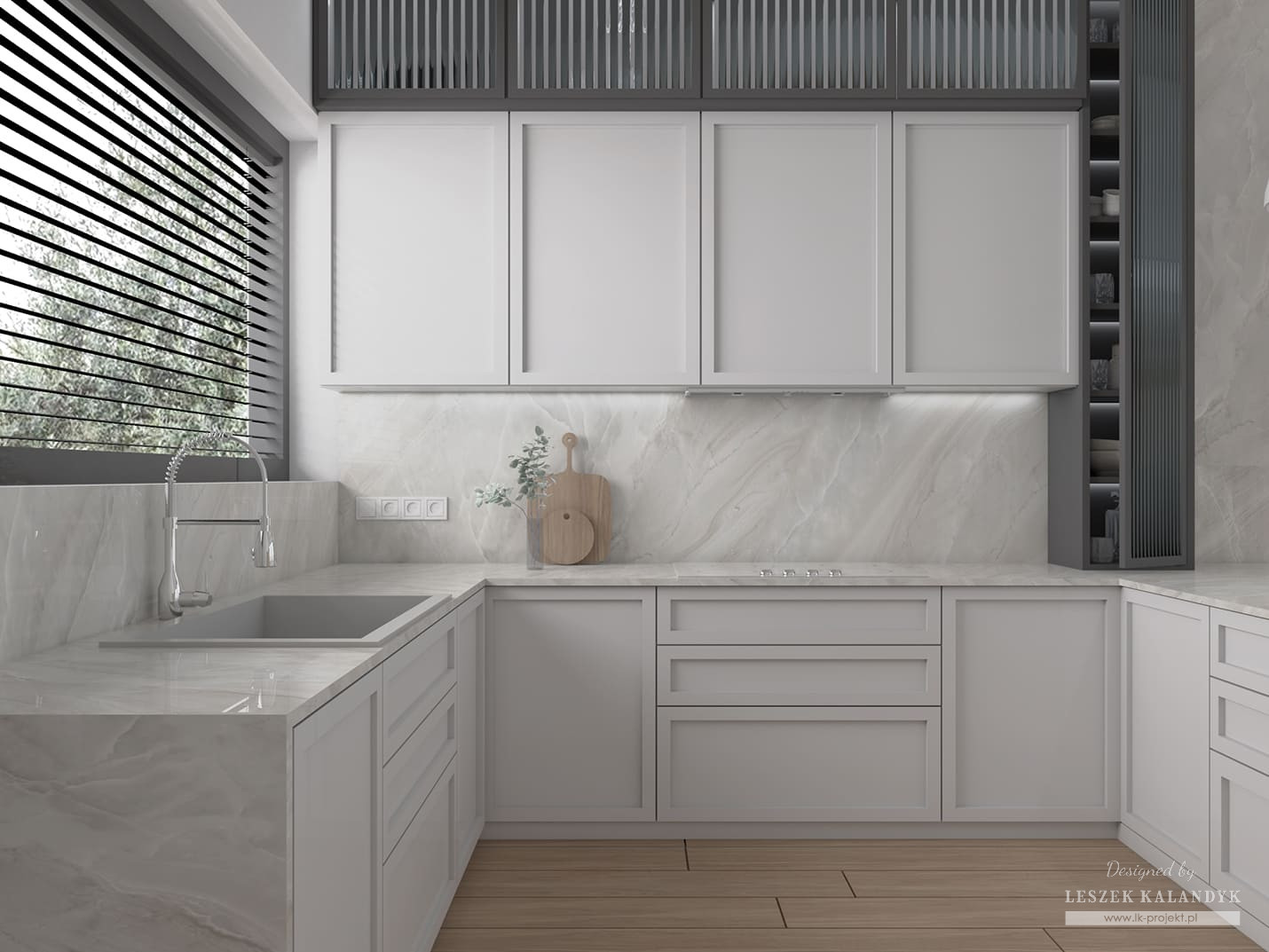

| 3. Kitchen | 13,81 m2 |
| 4. Pantry | 4,41 m2 |

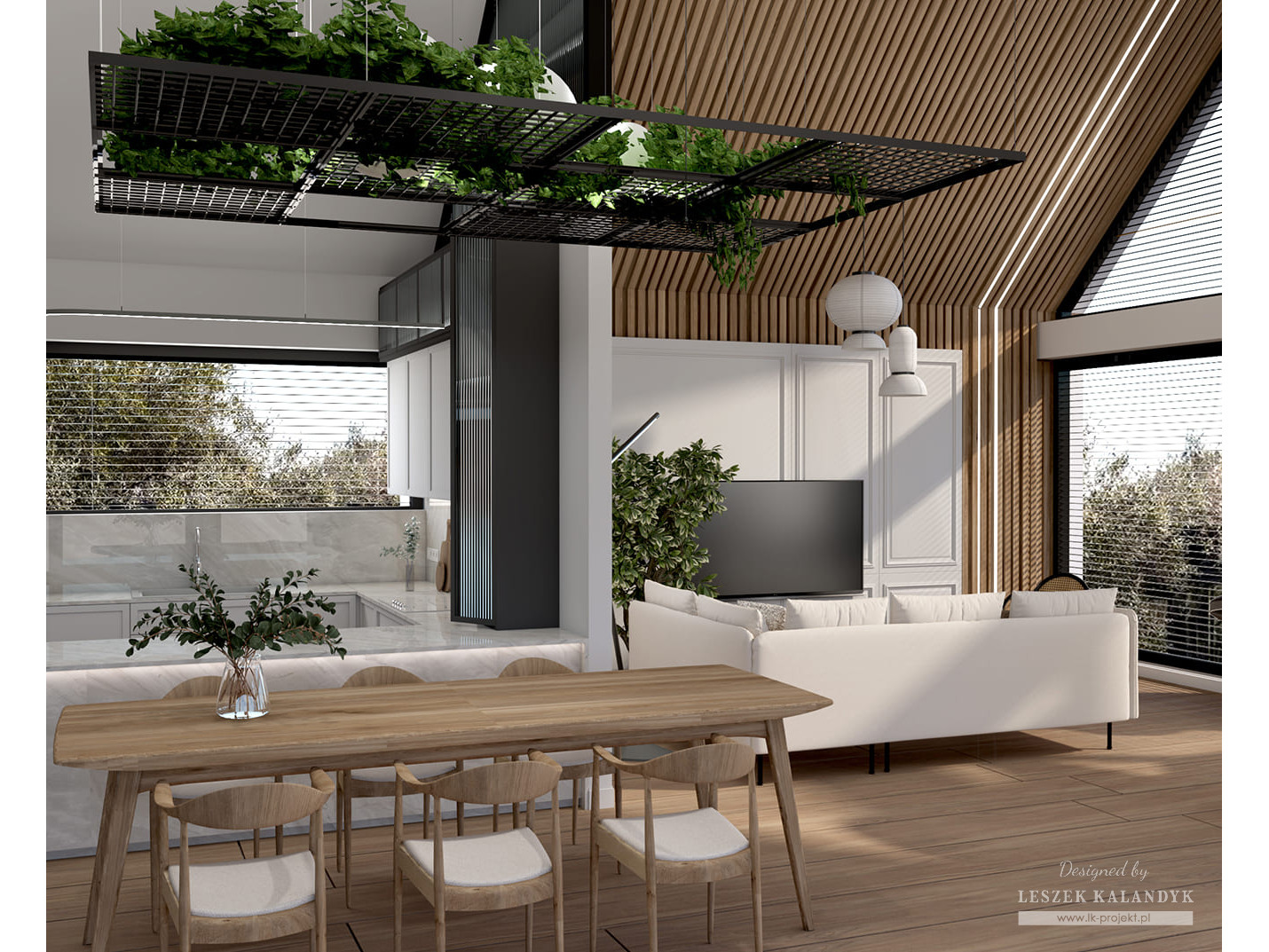

| 5. Living room | 35,24 m2 |
| 6. Pantry | 6,60 m2 |
| 7. Bathroom | 3,67 m2 |
| 8. Bedroom | 19,76 m2 |
| 9. Wardrobe | 9,86 m2 |
| 10. Bathroom 2 | 10,05 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
Read more on the What does the project contain?
